xTLV Free Float Steam Trap - J5X & J7X Series
Premium Japanese-engineered free float steam traps manufactured by TLV, the world leader in steam engineering solutions. Featuring X-element automatic air venting, self-modulating operation, and inline maintenance access for maximum efficiency and reliability.

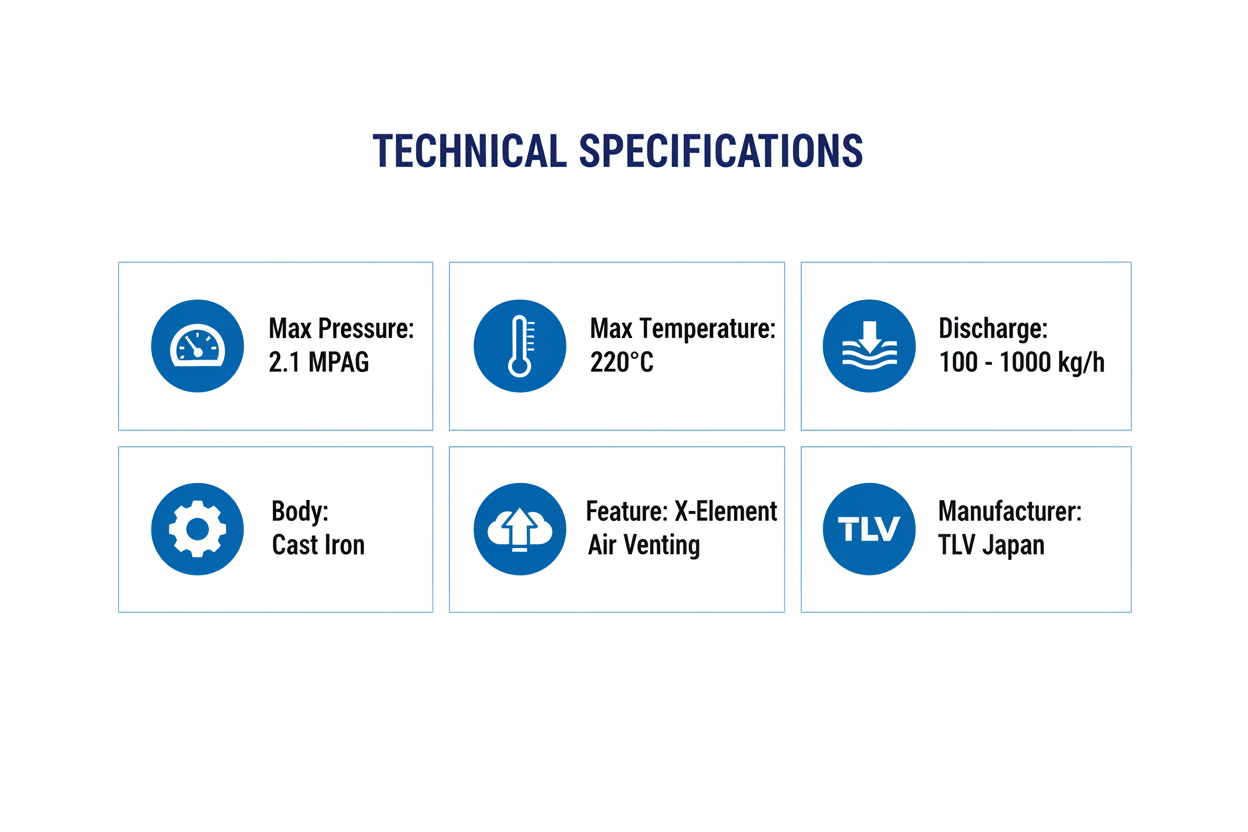

Technical Specifications
- Max Operating Pressure: 2.1 MPaG
- Max Operating Temperature: 220°C
- Discharge Capacity: 100 - 1000 kg/h
- Body Material: Cast Iron
- Air Venting: X-element Automatic Air Venting
- Connection Types: Flanged (J7X) / Threaded (J5X)
Key Features
- Self-Modulating Free Float: Provides continuous, smooth, low velocity condensate discharge as process loads vary, ensuring optimal performance across all operating conditions
- Single Moving Part Design: Only one moving part (the free float) prevents concentrated wear and provides long maintenance-free service life with exceptional reliability
- X-Element Thermostatic Capsule: Features "fail open" design that vents air automatically until close-to-steam temperature is reached, preventing air binding and ensuring efficient startup
- Built-In Screen: Large surface area screen ensures extended trouble-free operation by preventing debris from entering the trap mechanism
- Inline Access: Easy inline access to internal parts simplifies cleaning and maintenance, reducing downtime and maintenance costs significantly
Available Models
- J7X Series: Flanged free float steam trap for heavy-duty industrial applications with high capacity requirements (100-1000 kg/h)
- J5X Series: Threaded free float steam trap for compact installations and standard piping systems with reliable performance
Applications
Ideal for high-pressure steam systems up to 2.1 MPaG, high-temperature applications up to 220°C, variable process loads requiring self-modulating discharge, automatic condensate removal from steam lines, heat exchangers and process equipment, boiler systems and steam mains, industrial HVAC applications, and any system requiring continuous automatic condensate drainage with air venting capability.
Available in Karachi for immediate delivery to industrial and commercial customers across Pakistan.
